M4/6.D1.1 | TE Connectivity | Panel Fabrication
TERMINAL BLOCK, FEED-THROUGH, SCREW CLAMP, 2 LEVELS, 10AWG / 4MM2 RATED, 25A, 800V, GRAY
Brand:TE Connectivity
MPN:M4/6.D1.1
SKU:M4/6.D1.1
List Price:
$20.00
Today's Price:
$10.40
Log in for customized pricingproduct specifications
Block Function
Feed -through
Terminal Type
Screw Clamp
Voltage Rating
800 V
Primary Color
Gray
Type
Feed-Through
Current Rating
25 A
Terminal Block Type
Feed-Through
Number of Levels
2
Mount
DIN-Rail
product series specifications
Rated Voltage: 600 VAC/VDC max.
Approvals: UL File #E60645; CSA, CE, RoHs
Warranty: 1 year
product series features
- Wire secured by ribbed compression clamp
- Universal DIN rail mounting
- Reduced installation time
- Block removable without displacing adjacent blocks
- Various marking options
more information & related documents
Series Description

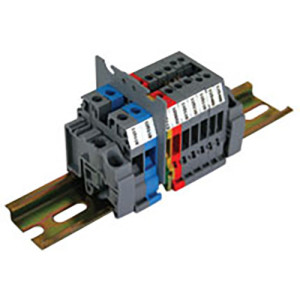

The TE Connectivity Model M4/6 and M6/8 DIN rail terminal blocks offer a modular design for flexibility in layout and reduced installation time. Unique marker holders provide optional top- or side-mount marking capability. The Model M4/6 offers maximum circuit density while the Model M6/8 offers the convenience of larger screws for conventional screwdriver installation.
Kele Description
TERMINAL BLOCK, FEED-THROUGH, SCREW CLAMP, 2 LEVELS, 10AWG / 4MM2, 25A, 800V, GRAY
Manufacturer
TE Connectivity
